Home Material Handling Hoists & Winches & Rigging Magnetic Lifter

YCXU1000KGN42DISWV0

VEVOR Magnetic Lifter, 2200lbs/1000kg Pulling Capacity, 2.5 Safety Factor, Neodymium & Steel, Lifting Magnet with Release, Permanent Lift Magnets, Heavy Duty Magnet for Hoist, Shop Crane, Block, Board
156
yellow VEVOR magnetic lifter with metal handle, white gloves, and an l-shaped tool on the side.
VEVOR magnetic lifter showcasing 2200 lbs lifting capacity, 2.5 safety factor, n42 neodymium magnets.

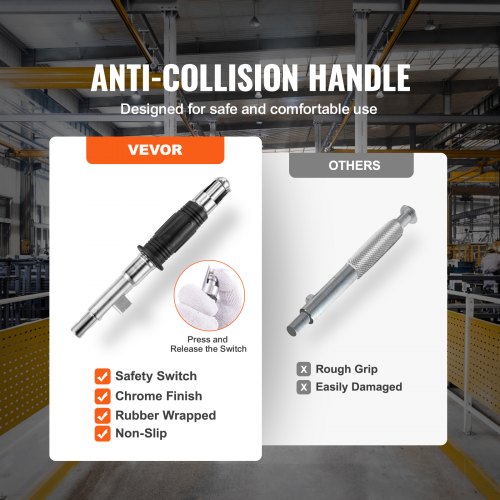

VEVOR magnetic lifter anti-collision handle with safety switch, chrome finish, rubber wrapped, non-slip.
VEVOR magnetic lifter with chrome-plated hook, 45# steel, in an industrial warehouse setting.
VEVOR magnetic lifter with flexible rotating shaft, limit bolt, and mechanical switch for easy operation.
VEVOR magnetic lifter with u-shaped groove for flat and round steel, larger adsorption surface.

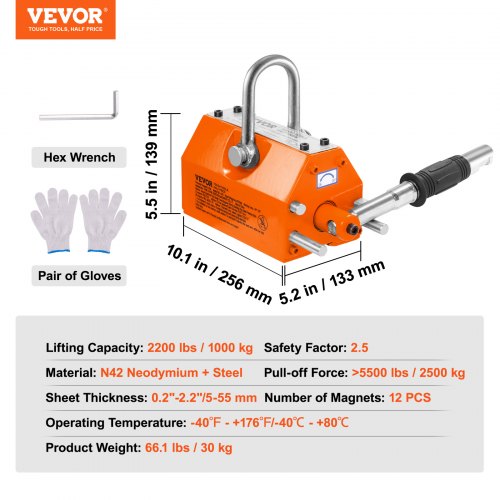

VEVOR magnetic lifter with hex wrench, gloves, and dimensions. lifting capacity: 2200 lbs/1000 kg.
VEVOR magnetic lifter in industrial setting, lifting a cylindrical metal object with precision.
yellow VEVOR magnetic lifter with handle, safety lock, gloves, and l-shaped wrench included.
yellow VEVOR magnetic lifter with metal handle and control switches. heavy-duty lifting tool.
yellow VEVOR magnetic lifter with a handle and control lever for heavy-duty lifting tasks.
yellow VEVOR magnetic lifter with metal handle and on/off switch lever.
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
Traction Force: 1000 kg
400 kg 100 kg 600 kg 1000 kg 300 kg 1500 kg 2000 kg
QTY: 1
Add to Cart
Buy Now
Add to Quote
FREE Returns.Details
Add to Wishlist
About This Item
  • 2200 lbs Lifting Capacity: Built with N42 neodymium magnets, this permanent magnetic lifter can lift 2200 lbs/1000 kg loads. With an upgraded 2.5 safety factor, it is solid and reliable enough to lift steel sheets, blocks, rods, cylindrical, and other magnetic materials.
  • Security Handle Design: The magnet for hoist is designed with a chrome-plated anti-collision handle. Press the safety switch to rotate the handle, avoiding the risk of accidental startup and ensuring security. The handle is rubber-wrapped for slip resistance and a comfortable grip.
  • Heavy-Duty Chrome-Plated Hook: The hook of our hoist magnet is made from high-strength steel with a chrome finish. You don't have to worry about it breaking or deforming when lifting. Its chrome-plated surface is smoother, more rust-proof, and easier to clean.
  • Operate Without Sweat: Our permanent magnet crane features a flexible rotating shaft, making it easier to control the switch. Just turn left to turn on the suction and right to turn off the suction. For added security, the limit bolt is designed to fix the handle.
  • U-Shaped Groove: The U-shaped bottom groove is compatible with both flat plates and round steels, boosting a wider range of applications. This permanent lift magnet is an excellent sheet metal lifting tool for the electricity, engineering, transportation, and mining industries.
See more See less

Frequently Bought Together

People Who Bought This Item Also Bought

Description
vevorA+Template
Change the Way You Look at Lifting
VEVOR magnetic lifter with 2200 lbs lifting capacity and 2.5 safety factor in an industrial setting.
VEVOR magnetic lifter with 2200 lbs lifting capacity and 2.5 safety factor in an industrial setting.
Our permanent magnetic lifter can easily hoist 2200 lbs/1000 kg loads. It is made of strong N42 neodymium magnets, allowing for efficiently lifting kinds of steel materials without any electrical power supply on industry sites. So get ready to use this excellent steel workpiece lifting equipment!
VEVOR magnetic lifter dual safety protection highlighting limit bolt, switch, and handle mechanism.
VEVOR magnetic lifter dual safety protection highlighting limit bolt, switch, and handle mechanism.
Our hoist magnet boosts an anti-collision handle designed with a safety switch, while the limit bolt can tightly fix the handle during lifting.
VEVOR magnetic lifter with sturdy chrome-plated steel hook, rust-proof and easy to clean in a warehouse.
VEVOR magnetic lifter with sturdy chrome-plated steel hook, rust-proof and easy to clean in a warehouse.
The permanent magnet crane features a heavy-duty chrome-plated hook, putting your mind at ease by avoiding breakage, deformation, and rust.
VEVOR magnetic lifter lifting flat and round steel showing 100% and 30-50% adsorption quantities.
VEVOR magnetic lifter lifting flat and round steel showing 100% and 30-50% adsorption quantities.
The U-shaped groove of our permanent lift magnet is suitable for flat and round steel. When lifting round steels, the adsorption amount is 30%-50% of that of flat steels.
VEVOR magnetic lifter security precautions: no vertical use, no edge lifting, no rough surfaces, no loadless use.
VEVOR magnetic lifter security precautions: no vertical use, no edge lifting, no rough surfaces, no loadless use.
Please clean the surface of the steel sheet before using the steel magnetic lifter, and do not stand under the lifted plate. Please do not use it vertically or at the edge, or on rough surfaces.
VEVOR magnetic lifter with 2200 lb capacity, includes gloves, hex wrench, n42 neodymium material.
VEVOR magnetic lifter with 2200 lb capacity, includes gloves, hex wrench, n42 neodymium material.
See more
Compare with similar items
See more

Specifications

Item Model Number PML-1000
Lifting Capacity 2200 lbs/1000 kg
Safety Factor 2.5
Material N42 Neodymium + Steel
Pull-off Force >5500 lbs/2500 kg
Sheet Thickness 0.2"-2.2"/5-55 mm
Number of Magnets 12 PCS
Certification CE
Operating Temperature -40℉ - +176℉/-40℃ - +80℃
Base Size (L x W x H) 10.1" x 5.2" x 5.5"/256 x 133 x 139 mm
Product Weight 66.1 lbs/30 kg
Manual
English
Questions and Answers
Q: Do you offer a dongle cord for your 2 ton hoist? I have it on a trolley and 18 foot I beam. The hoist only has a 6’ cord
A: Sorry, a dongle cord is not offered.
by vevor on
See all 1 answered questions
Customer Reviews
4.8 out of 5
Based on 156 reviews
Ratings by Features
Price
Quality
Features
Easy to Use
See more See less
Mike
Operations Manager
Reviewed on
Almost daily use for over a year now. Works as it should for a fraction of the price. Can't think of anything I would change about it. Thanks! ...See more See less
Helpful
Mark
100 kg magnetic lifter review
Reviewed on
Good product. Worked as I hoped. Helped me lift the 60 lbs manhole cover off my septic tank for access to the filter. ...See more See less
Helpful
one people found this helpful
boss_hogg
owner
Reviewed on
This magnetic lifter works very well! I used it in my shop the other day to lift a 4'x10'plate of 1/2" steel onto my CNC plasma table and could not ask for it to work any better. With that being said it did arrive missing the handle to turn it on and off. Not to worry I just used a bolt to do so but you must be careful because if you do not get if pushed onto the stops it will fly out at a high rate of speed. I had contacted Vevor before using it to see about getting a handle but they where no help. They did make mention of returning it (on my dime) but I thought that was wasteful as it still worked fine. Vevor ended up telling me they would give me a 10 dollar credit but I've never seen it. Great product but not good enough to pick up Vevor's customer service and their short comings. ...See more See less
Helpful
3 people found this helpful
Wolfplace
Shop owner
Reviewed on
Great magnet for metal with a flat surface. Need to be somewhat carful with anything that doesn't have good surface contact. Also very handy for picking up screw, nails etc with the excavator. Just add a flat plate to extend the magnet surface & it works great :) ...See more See less
Helpful
one people found this helpful
Andy
President
Reviewed on
I love this thing. Been wanting one for years but the price for the American made brands were very high. Saw this for $160 and immediately purchased it for a job that I had to lift many 300 lb. angles. Worked like a charm, almost too good. Was picking 2 up at a time when they were stacked. ...See more See less
Helpful
See all 156 reviews
