VEVOR Mag Drill, 0-300 RPM Stepless Speed Electromagnetic Drill Press, 2" Depth 2" Dia Magnetic Core Drill, 2922lbf Boring Tool Drill Press, 1680 Watts Drill Press, Yellow and Black Drill Machine
157
yellow VEVOR mag drill with control panel and handle.
VEVOR mag drill 1680w, 110v, 0-300 rpm, 13000n holding force, drilling metal.
VEVOR mag drill with 0-300 rpm, 2-inch boring depth, and 1680w copper core coil.
VEVOR mag drill with double coil magnet base for upright, horizontal, and inverted use.
VEVOR mag drill with ergonomic handle, heat-removing coolant bottle, and lifting rod.
VEVOR mag drill press highlighting dust-proof air inlet and four-dimensional exhaust air.
VEVOR mag drill specifications: 16.3"x6.3"x12.2", 45.2 lbs, yellow and black.
VEVOR mag drill operating on a metal surface with shavings around the drill bit.
yellow VEVOR mag drill with lever, cord, and control panel.
VEVOR mag drill with yellow motor, black frame, and control details.
VEVOR mag drill with yellow motor and control panel.
yellow VEVOR mag drill with coolant tank and handles, front view.
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
Power: 1680W
1680W 750 W
QTY: 1
Add to Cart
Buy Now
Add to Quote
FREE Returns.Details
Add to Wishlist
About This Item
  • 1680W STRONG POWER: Built to stand by you on toughest job sites. Powerful motor: 1680W, 110V, 60HZ, 10A. Max Boring Depth: 2inch/50mm. Max Boring Diameter: 2inch/50mm. Max Travel Distance: 8.5inch/216mm. Main function: drilling and coring. Besides, our magnetic drill can only be used with hollow boring bits, not with annular bits.
  • STEPLESS SPEED & COOLING SYSTEM: Our magnetic base drill bores at 0 - 300RPM. Its stepless speed control knob provides a more precise speed. Coolant tank with 300 mL capacity, dustproof air inlet, and exhaust air holes are designed for cooling the magnetic drill press during overheating.
  • POWERFUL MAGNET: The electromagnetic base is made of almost pure iron and has a strong magnetic force up to 2922lbf/13000N, ensuring that the machine does not move during drilling.
  • CONSIDERABLE DETAILS: Ergonomically designed lifting handle, three extended crank handles coated with nonslip rubber and external carbon brush allow you to operate the mag drills with minimum effort.
  • VERSATILE APPLICATION: This versatile mag drill press is ideal for ship & bridge building, industrial and steel fabrication, windmill & power-plant construction, railway manufacture, equipment installation, and many other fields.
See more See less

Frequently Bought Together

People Who Bought This Item Also Bought

Description
VEVOR mag drill 1680w, max drilling diameter 2in, depth 2in, 110v, 10a, 0-300rpm.
yellow VEVOR mag drill with black base and handle featuring control panel.
1680W Magnetic Drill
Our portable mag drill base is designed for precise and demanding boring. This heavy-duty power drill magnetic can drill into your rigid materials, producing a 2" diameter bore up to 2" depth. The considerate cooling system keeps your mag base for drill from overheating and further extends its service life. In addition, the nearly pure iron base anchors the mag base drill press solidly during work, avoiding movement during the drilling process.
  • Note
  • 1. The magnetic base can only be adsorbed on the steel plate (thickness greater than or equal to 5 mm).
  • 2. Our magnetic drill can only be used with hollow boring bits, not with annular bits.
  • 1680W Strong Power
  • Powerful Magnet
  • Stepless Speed & Cooling System
  • Considerable Details
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

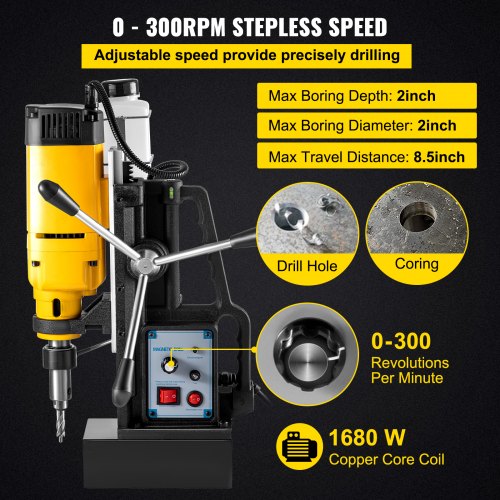

VEVOR mag drill, 1680w high performance with 2-inch depth, 2-inch diameter, 8.5-inch travel.
1680W High Performance
This heavy-duty magnet drill press generates exceptionally strong power for long-time use thanks to its 1680W motor. And our magnetic drill can only be used with hollow boring bits, not with annular bits.
VEVOR mag drill control panel with stepless speed regulation and several labeled switches.
Stepless Speed Regulation
Extend cutter life and optimize your drilling with the full-wave variable speed at 0 - 300RPM. Besides, You can control its speed accurately by the knob.
VEVOR mag drill showcasing 2922lbf strong magnetic force in upright, horizontal, inverted positions.
2922lbf Strong Magnetic
With 2922lbf/13000N of holding force, our mag drill anchors itself securely through its solid magnetic bottom.
VEVOR mag drill with dust-proof air inlet, four-dimensional exhaust air, and external coolant.
Dustproof Cooling Hole
Coolant bottle with quick push-fit tube connection included for long cutter life and smooth drilling. What's more, dustproof air inlet and exhaust air holes for temperature reduction.
VEVOR mag drill with external carbon brush, rocker arm lift rod, and portable handle.
Practical Design
These three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying. External carbon brush makes it easy to be replaced.
VEVOR mag drill showcasing wide application in bridge, shipbuilding, railway, and steel.
Wide Application
Our power magnetic drill presses are used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction and many other fields.
yellow and black VEVOR mag drill with measurements: 16.3in x 12.2in and 16.3in x 6.3in.
Specifications
  • Model: VV-MD-1680
  • Voltage: 110V, 60HZ,10A
  • Power: 1680W
  • No-load Speed: 0-300RPM
  • Max Boring Depth: 2inch/50mm
  • Max Boring Diameter: 2inch/50mm
  • Max Travel Distance: 8.5inch/216mm
  • Max Magnetic Force: 2922lbf/13000N
  • Coolant Tank: 300ml
  • Product Weight: 45.20lb/20.5KG
  • Product Size: 16.33 x 12.20 x 6.30inch/41.5 x 31 x 16cm
yellow and black VEVOR mag drill with adjustable handle and power controls.
Package Content
  • 1 x 1680W Magnetic Drill
  • 3 x Cranks
  • 1 x ¢12 Drill Bit
  • 1 x Cooling Tank
  • 1 x Security Rope
  • 1 x ¢6.34 x 77 Thimble
  • 1 x ¢5 Inner Hexagon Wrench
  • 1 x Manuel
VEVOR mag drill 1680w, max drilling diameter 2in, depth 2in, 110v, 10a, 0-300rpm.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
yellow VEVOR mag drill with black base and handle featuring control panel.
1680W Magnetic Drill
Our portable mag drill base is designed for precise and demanding boring. This heavy-duty power drill magnetic can drill into your rigid materials, producing a 2" diameter bore up to 2" depth. The considerate cooling system keeps your mag base for drill from overheating and further extends its service life. In addition, the nearly pure iron base anchors the mag base drill press solidly during work, avoiding movement during the drilling process.
  • Note
  • 1. The magnetic base can only be adsorbed on the steel plate (thickness greater than or equal to 5 mm).
  • 2. Our magnetic drill can only be used with hollow boring bits, not with annular bits.
  • 1680W Strong Power
  • Powerful Magnet
  • Stepless Speed & Cooling System
  • Considerable Details
VEVOR mag drill, 1680w high performance with 2-inch depth, 2-inch diameter, 8.5-inch travel.
1680W High Performance
This heavy-duty magnet drill press generates exceptionally strong power for long-time use thanks to its 1680W motor. And our magnetic drill can only be used with hollow boring bits, not with annular bits.
VEVOR mag drill control panel with stepless speed regulation and several labeled switches.
Stepless Speed Regulation
Extend cutter life and optimize your drilling with the full-wave variable speed at 0 - 300RPM. Besides, You can control its speed accurately by the knob.
VEVOR mag drill showcasing 2922lbf strong magnetic force in upright, horizontal, inverted positions.
2922lbf Strong Magnetic
With 2922lbf/13000N of holding force, our mag drill anchors itself securely through its solid magnetic bottom.
VEVOR mag drill with dust-proof air inlet, four-dimensional exhaust air, and external coolant.
Dustproof Cooling Hole
Coolant bottle with quick push-fit tube connection included for long cutter life and smooth drilling. What's more, dustproof air inlet and exhaust air holes for temperature reduction.
VEVOR mag drill with external carbon brush, rocker arm lift rod, and portable handle.
Practical Design
These three extended crank rods allow you to adjust the drill up and down with minimum effort. Ergonomically handles for easy carrying. External carbon brush makes it easy to be replaced.
VEVOR mag drill showcasing wide application in bridge, shipbuilding, railway, and steel.
Wide Application
Our power magnetic drill presses are used in steel structures, shipbuilding, bridge construction, wind power generation, drilling, electric power construction and many other fields.
yellow and black VEVOR mag drill with adjustable handle and power controls.
Package Content
  • 1 x 1680W Magnetic Drill
  • 3 x Cranks
  • 1 x ¢12 Drill Bit
  • 1 x Cooling Tank
  • 1 x Security Rope
  • 1 x ¢6.34 x 77 Thimble
  • 1 x ¢5 Inner Hexagon Wrench
  • 1 x Manuel
yellow and black VEVOR mag drill with measurements: 16.3in x 12.2in and 16.3in x 6.3in.
Specifications
  • Model: VV-MD-1680
  • Voltage: 110V, 60HZ,10A
  • Power: 1680W
  • No-load Speed: 0-300RPM
  • Max Boring Depth: 2inch/50mm
  • Max Boring Diameter: 2inch/50mm
  • Max Travel Distance: 8.5inch/216mm
  • Max Magnetic Force: 2922lbf/13000N
  • Coolant Tank: 300ml
  • Product Weight: 45.20lb/20.5KG
  • Product Size: 16.33 x 12.20 x 6.30inch/41.5 x 31 x 16cm
See more
Compare with similar items
See more

Specifications

Model VV-MD-1680
Voltage 110V, 60HZ,10A
Power 1680W
No-load Speed 0-300RPM
Max Boring Depth 2inch/50mm
Max Boring Diameter 2inch/50mm
Max Travel Distance 8.5inch/216mm
Max Magnetic Force 2922lbf/13000N
Coolant Tank 300ml
Product Weight 45.20lb/20.5KG
Product Size 16.33 x 12.20 x 6.30inch/41.5 x 31 x 16cm
Questions and Answers
Q: Does this drill come with a chuck for regular drill bits?
A: Yes, it comes with a chuck for regular drill bits.
by vevor on
Q: How big is the Weldon Shank (largest size 3/4)?
A: The weldon shank is 3/4, and the largest hole drilled is 2 inches in diameter.
by vevor on
Q: when using annular cutters with the VEVOR Mag Drill, 0-300 RPM Stepless Speed Electromagnetic Drill Press, 2" Depth 2" Dia Magnetic Core Drill, 2922lbf Boring Tool Drill Press, 1680 Watts Drill Press, Yellow and Black Drill Machine Does the drill have an internal spring which acts on the center pin of the annular cutter to eject the plug created by annular cutters?
A: Yes.
by vevor on
See all 5 answered questions
Customer Reviews
4.8 out of 5
Based on 157 reviews
Ratings by Features
Price
Quality
Features
Easy to Use
See more See less
Dave
Shop owner
Reviewed on
Works great the variable speed control is a nice option. For the price it is well built and sturdy. I don’t use it everyday so I can’t tell you about its longevity. I would recommend it to a friend. ...See more See less
Helpful
Gary
DIY
Reviewed on
Excellent product, especially for the price. Drilled about 100 holes for a marine railway project. No complaints! Excellent mag holding power. Other models have more features like speed control, which would have been an advantage, but at $150 you can't beat this one. ...See more See less
Helpful
Frank Bravo
Magnetic drill
Reviewed on
Has a very slow start up but work great. Also had a nick in the electrical cord about a inch coming out of the base. I used some splicing tape and it's still functional. Other those minor thing it's a great machine. ...See more See less
Helpful
Ty
Great mag drill
Reviewed on
Great drill. Drilled over 100 holes so far in all different thicknesses of steel. With no issues. Great product would buy again and recommend to others ...See more See less
Helpful
Paul W
Millwright
Reviewed on
I am a retired millwright of 47 years and was asked by a friend to build some grain bin jacks. I accepted the job but needed a mag drill to do the job. Milwaukee was priced at over a thousand dollars so I checked out Vevor priced at 200 bucks and was pleasantly surprised by the quality of the drill it drilled me a hundred holes mostly 5/8” to 1” . Plenty of power and the electro magnet was very strong. I would buy the drill again. Very satisfied !!! ...See more See less
Helpful
See all 157 reviews
