About This Item

Cut into Good Times: Are you tired of big pieces of wood getting the best of you? Well, get ready for clean seamless cuts every time. Equipped with a powerful 15 Amp motor, the woodworking table saw cuts through various sizes of wood with ease at high speed of 4500 RPM. Its 40-tooth blade dramatically improves cutting efficiency.
Cut at Various Angles: With the help of an adjustable, full-length, parallel fence with a measuring guide rail, our table saw for jobsite ensures reliable and smooth rip-cutting every time. You are going to feel so satisfied with the results. You can set the blade to any desired angle between -60° to 60° for bevel-cutting. Stay in control and cut at the most common angles no matter what.

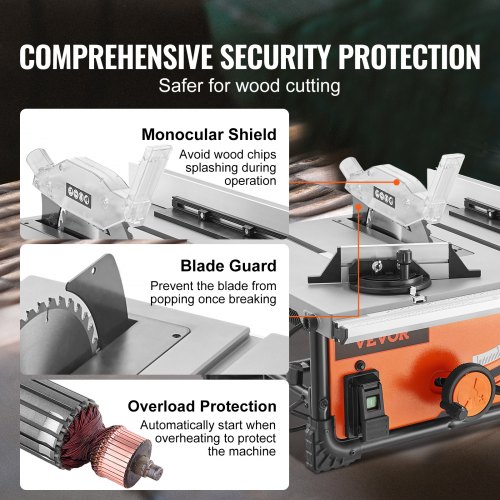

Your Security Comes First: Security is always our top priority. This jobsite table saw is designed with a security shield to prevent sawdust from lingering in the air. A blade guard prevents the blade from popping out after breaking, too. If the machine is overheating, the copper wire automatically starts overload protection to save the machine from damage. With security mechanisms like this put in place, you can't go wrong!
Designed Just for You: Don't you just hate dust and bulky tables? The 10 inch table saw is easy to carry for outdoor operations thanks to its compact design. It fits perfectly in your truck for convenient storage. The dust port does well in dust prevention, keeping your workshop clean.
Perfect Choice for Wood Cutting: The portable table saw is helpful for wood cutting and various DIY woodworking projects. You can process logs, cut wood boards, or make furniture. Whether in the workshop or outdoors, it will become your #1 cutter helper. Let's get to work.

See more See less

Customer Reviews

4.7 out of 5

Based on 3 reviews

Customer Ratings

Price

Quality

Features

Easy to Use

See more See less

niftywoodcreations

My first table saw

Reviewed on

Helpful Thank you for your feedback.

Brithor

Reviewed on

As I've stated in previous reviews, if you are not mechanically inclined and willing to make adjustments and are baffled by less than stellar assembly instructions, go ahead and spend a bunch more money for another product. The included assembly instructions are not for this exact product. Close but no cigar. The stand is pretty tricky and if not for the schematic showing centerline connections, I don't know if I'd have gotten the job done. As for the parts, the stove bolts, which have a domed head with a an area of square shank directly below the head (to lock the shaft from turning), we're supposed to fit into the square holes in the corresponding tubes (legs). But the shank was too big to fit in the sq holes. Tightening the nut enough to pull it in will collapse the thin walled tubes. So I filled down the first pair, but then said to h*ll with that and just allowed the heads to extend out beyond the tube surface. Got the stand assembled and working. Placed the plastic orange platform upon the stand in the same orientation as shown in instruction picture and made the appropriate attachments. Everything else is pretty much clear and/or self-explanatory. Issues with my particular unit: There is a stamped steel piece at the end of the table extension that is parallel to the blade and connects the extension rails. The rip fence, when moved to the extreme right side, will be over top of this part. Mine had two deformities on the outside edge. It was also installed too high so the rip fence had to be lifted up to clear the vertical edge. I removed the the offending piece straightened it and reinstalled it at the correct height. Now here is the biggest issue... the rip fence comes with a plastic part attached which is not mentioned in the manual and is only shown in one or two pics on the website. It extends onto the table and effectively cuts down the allowable rip by about 2". One of my criteria for a saw was a rip of at least 24" so I could rip plywood to any size. This part prevents that so I took it off, but what I found was that if you are ripping something that extends past the end of the fence where the lock handle is, the piece will not be parallel to the aluminum fence until it gets past the handle. This was totally unacceptable. To fix this fabrication error, I removed the two screws holding the plastic grip to the aluminum lever and filed the upper screw's head flat and down till it cleared the work. I then had to cut out a small portion of the grip, and then filed down the screw mounting surface till it also cleared the work. I no longer use the plastic fence add-on and can get the full rip as advertised. It is my belief that the mfgr probably discovered their fab error and chose to fix it by adding the plastic rip edge. That's why it is never mentioned in documentation. Other than that, the saw seems to work just fine. A bit loud, and draws quite a lot of current on startup but I wear hearing protection anyway. CHARACTER LIMIT REACHED! ...See more See less

Helpful Thank you for your feedback.

jerome miller

Easy to assemble great for on site workers

Reviewed on

Helpful Thank you for your feedback.

See all 3 reviews

Model	M1H-ZP7-254-1
No-Load Speed	4500 RPM
Rip Capacity	25 in/625 mm
Voltage	120V/60Hz
Motor Power	1800W (15A)
Max Cutting Depth	3.3 in/85 mm (cross cut at 90°); 2.2 in/55 mm (bevel cut at 45°)
Miter Gauge Range	-60˚ - +60˚
Dado Width	<0.5 in/13.5 mm
Saw Blade O.D.	10 in/254 mm
Saw Blade I.D.	0.6 in/15.875 mm
Saw Blade Tooth Thickness	0.1 in/2.8 mm
Number of Saw Blade Teeth	40
Product Size (L x W x H)	25.6 x 24.1 x 11.8 in/65 x 61.2 x 30 cm
Product Weight	42.3 lbs/19.2 kg
