VEVOR Air Compressor Electric Motor, 5 HP SPL 3450 RPM, 208-230 Volt 3.1 KW Single Phase, 56 Frame 5/8" Keyed Shaft 60 Hz, Commercial-Duty CCW Rotation, 1.88" Shaft Length NEMA for Air Compressors
Price including VAT See details
About This Item
- Single Phase Induction Motor: This compact powerful electric motor runs at 5 HP SPL 3450 RPM max speed. Frame type: 56. Input power: 3.1 kW. Full Load Amp: 15 - 16 A. Voltage: 208-230 V 60 Hz. Rotation: Non-reversible CCW. Shaft length: 1.88 in / 4.8 cm. Shaft diameter: 5/8 in / 1.59 cm keyed. Phase: Single phase. Service factor: 1.15.
- Steel Housing: The motor shell is made of steel. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life.
- Overload Thermal Protector: The heavy-duty electric motor adopts a manual reset knob against high-temperature overload. Reduced starting amperage design ensures the reduced voltage starting at a rated load. Insulation class-F, ENC-IP23, Ambient temperature-104℉ / 40℃, Duty-CONT, Pole-2.
- Heat Dissipation Holes: The air compressor motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping in the motor and causing accidents.
- Designed for Air Compressors: The open drip-proof motor is better used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Please purchase a motor according to the specific needs of your compressors.
People Who Bought This Item Also Bought
Description

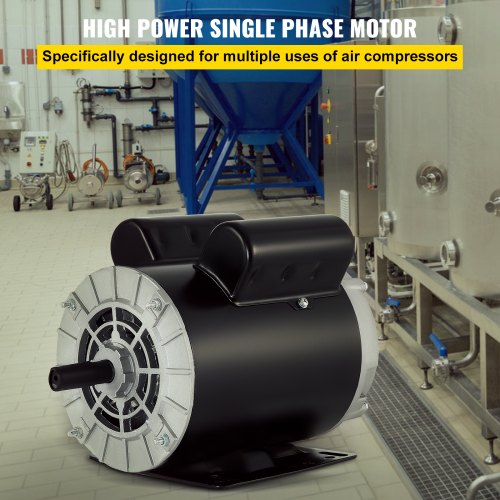

5 HP SPL 3450 RPM Electric Motor
Single Phase & ODP Construction & For Air Compressor Uses
- VEVOR compressor duty electric motor is rated at 5 HP SPL 3450 RPM 56 frame and can be connected to 208 - 230v incoming power devices. This single-phase electric motor conforms to the standard for high hardness and performance, which is well suited for air compressor applications.
- Note: Not all 5 hp motors are exactly the same. So, with the new motor you're purchasing, it's vitally important that you match up the specs on your old motor. All the information you need to know can be found right on your electric motor's nameplate/sticker, which usually can be found on the side of the motor.
- Single Phase Induction Motor
- Steel Housing
- Overload Thermal Protector
- Heat Dissipation Holes
- Designed for Air Compressors
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
High-Efficiency Work
5 HP reliable motor allows you to conserve energy over extended periods, reducing power costs and overheads. It's effortless to move and strong enough to maintain a high working efficiency. The motor is Non-Reversible CCW.
Strip-shaped Cooling Holes
The 3.1kW single-phase electric motor for the air compressor has multiple heat dissipation holes on both sides. It can quickly dissipate heat while running for a long time, effectively guarding the motor body.
Manual Reset Button
When excessive heat is generated in the motor circuit, the thermal protector can shut down the motor until it cools to a secure temperature. The starting capacitor and running capacitor will continuously maintain the duty compressor motor's process.
High Hardness Shaft
Our high-quality steel shaft has both toughness and hardness. It has the characteristics of low rotating noise and stable operation at high speed. Prelubricated bearing is not easy to wear during running.
Rugged & Durable Construction
The steel motor housing features robustness, reliability, strength, and durability, offering a long service life. A rigid mounting base is also included in the package for better stability and to reduce friction.
Designed for Air Compressors
This 1-phase commercial-duty open drip-proof air compressor motor is intended to be used in dry and non-dusty environments. Suitable for various kinds of air compressors and other related appliances.
Specifications
- Model: CML360556
- Voltage: 208-230V
- Base RPM: 3450RPM
- Full Load Amps: 15-16A
- Horsepower: 5HP, 3.1kW
- Enclosure Type: ODP (Open Drip-Proof)
- Shaft Diameter: 5/8 in / 1.59 cm
- Shaft Length: 1.88 in / 4.78 cm
- Frame: 56Frame
- Service Factor: 1.15
- Input: 3.1 kW
- AC Phase: Single Phase
- AC Frequency Rating: 60Hz
- Current Type: AC
- NEMA Frame Suffix: 56
- Insulation Class: F (Max 311°F)
- Amperage: 15-16A
- Phase: Single Phase, 2 pole
- Reversible/Non-Reversible: Non-Reversible
- Mounting Type: Base-Mounted
- Rated Load (HP): 5
- AC Motor Type: Induction/Asynchronous
- Type: SPL
- Rotation: CCW (Counter clockwise rotation when viewed from the shaft end)
- Note: THIS MOTOR IS NOT REVERSIBLE
- CODE: L
- Duty: CONT
- AMB: 40℃
- Product Size (L x W x H): 12.28 x 6.5 x 7.95 in / 31.19 x 16.51 x 20.19 cm
- Net Weight: 32.84 lbs / 14.9 kg
Package Content
- 1 x Electric Motor
- 1 x Mounting Base
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
5 HP SPL 3450 RPM Electric Motor
Single Phase & ODP Construction & For Air Compressor Uses
- VEVOR compressor duty electric motor is rated at 5 HP SPL 3450 RPM 56 frame and can be connected to 208 - 230v incoming power devices. This single-phase electric motor conforms to the standard for high hardness and performance, which is well suited for air compressor applications.
- Note: Not all 5 hp motors are exactly the same. So, with the new motor you're purchasing, it's vitally important that you match up the specs on your old motor. All the information you need to know can be found right on your electric motor's nameplate/sticker, which usually can be found on the side of the motor.
- Single Phase Induction Motor
- Steel Housing
- Overload Thermal Protector
- Heat Dissipation Holes
- Designed for Air Compressors
High-Efficiency Work
5 HP reliable motor allows you to conserve energy over extended periods, reducing power costs and overheads. It's effortless to move and strong enough to maintain a high working efficiency. The motor is Non-Reversible CCW.
Strip-shaped Cooling Holes
The 3.1kW single-phase electric motor for the air compressor has multiple heat dissipation holes on both sides. It can quickly dissipate heat while running for a long time, effectively guarding the motor body.
Manual Reset Button
When excessive heat is generated in the motor circuit, the thermal protector can shut down the motor until it cools to a secure temperature. The starting capacitor and running capacitor will continuously maintain the duty compressor motor's process.
High Hardness Shaft
Our high-quality steel shaft has both toughness and hardness. It has the characteristics of low rotating noise and stable operation at high speed. Prelubricated bearing is not easy to wear during running.
Rugged & Durable Construction
The steel motor housing features robustness, reliability, strength, and durability, offering a long service life. A rigid mounting base is also included in the package for better stability and to reduce friction.
Designed for Air Compressors
This 1-phase commercial-duty open drip-proof air compressor motor is intended to be used in dry and non-dusty environments. Suitable for various kinds of air compressors and other related appliances.
Package Content
- 1 x Electric Motor
- 1 x Mounting Base
Specifications
- Model: CML360556
- Voltage: 208-230V
- Base RPM: 3450RPM
- Full Load Amps: 15-16A
- Horsepower: 5HP, 3.1kW
- Enclosure Type: ODP (Open Drip-Proof)
- Shaft Diameter: 5/8 in / 1.59 cm
- Shaft Length: 1.88 in / 4.78 cm
- Frame: 56Frame
- Service Factor: 1.15
- Input: 3.1 kW
- AC Phase: Single Phase
- AC Frequency Rating: 60Hz
- Current Type: AC
- NEMA Frame Suffix: 56
- Insulation Class: F (Max 311°F)
- Amperage: 15-16A
- Phase: Single Phase, 2 pole
- Reversible/Non-Reversible: Non-Reversible
- Mounting Type: Base-Mounted
- Rated Load (HP): 5
- AC Motor Type: Induction/Asynchronous
- Type: SPL
- Rotation: CCW (Counter clockwise rotation when viewed from the shaft end)
- Note: THIS MOTOR IS NOT REVERSIBLE
- CODE: L
- Duty: CONT
- AMB: 40℃
- Product Size (L x W x H): 12.28 x 6.5 x 7.95 in / 31.19 x 16.51 x 20.19 cm
- Net Weight: 32.84 lbs / 14.9 kg
Compare with similar items
Specifications
| Model | CML360556 |
| Voltage | 208-230V |
| Base RPM | 3450RPM |
| Full Load Amps | 15-16A |
| Horsepower | 5HP, 3.1kW |
| Enclosure Type | ODP (Open Drip-Proof) |
| Shaft Diameter | 5/8 in / 1.59 cm |
| Shaft Length | 1.88 in / 4.78 cm |
| Frame | 56Frame |
| Service Factor | 1.15 |
| Input | 3.1 kW |
| AC Phase | Single Phase |
| AC Frequency Rating | 60Hz |
| Current Type | AC |
| NEMA Frame Suffix | 56 |
| Insulation Class | F (Max 311°F) |
| Amperage | 15-16A |
| Phase | Single Phase, 2 pole |
| Reversible/Non-Reversible | Non-Reversible |
| Mounting Type | Base-Mounted |
| Rated Load (HP) | 5 |
| AC Motor Type | Induction/Asynchronous |
| Type | SPL |
| Rotation | CCW (Counter clockwise rotation when viewed from the shaft end) |
| Note | THIS MOTOR IS NOT REVERSIBLE |
| CODE | L |
| Duty | CONT |
| AMB | 40℃ |
| Product Size (L x W x H) | 12.28 x 6.5 x 7.95 in / 31.19 x 16.51 x 20.19 cm |
| Net Weight | 32.84 lbs / 14.9 kg |
Questions and Answers
Q: Is it ok to connect two lines of 110 v each to L1 and L2 semiltenusely?
A: It is a single-phase 230v motor, which requires one live wire 230v to connect to L1 and one neutral wire to connect to L2.
By Vevor on
Q: I need to switch voltage from 220 to115
A: This motor only has one voltage, 230V, and cannot be switched to 115V.
By Vevor on
Q: Is this motor dual voltage 115 vac and 230 vac? Is this motor definitely ccw rotation viewed from the shaft end
A: It is single voltage and only 230V. Looking at the front axle end, it rotates counterclockwise. Here is the picture link :https://we.tl/t-17rZmS1rRb
By Vevor on
