VEVOR Hybrid Solar Inverter, 3KVA 2400W, Pure Sine Wave Off-Grid Inverter, 24VDC to 110VAC Multi-Function Inverter with Build-in 50A PWM Solar Charge Controller, Support Utility/Generator/Solar Energy
Price including VAT See details
About This Item
- Multi-Function Hybrid Inverter: This is an off grid multi-function inverter/charger, combining the functions of an inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Equipped with PWM solar charge controller to maximize and regulate DC power from the solar array to charge the battery bank.
- LCD Setting & Aluminum Housing: Configurable AC/Solar input priority via LCD setting. The comprehensive LCD display offers user-configurable and easy-accessible button operation. Selectable input voltage range and frequency according to city power in your country. This hybrid off grid inverter adopts an aluminum alloy shell to resist heat, cold, and rust.
- Fully Security Protections: The hybrid inverter solar applies overload / over temperature / short circuit protection to ensure the inverter is fully protected during use so that the electrical appliances will operate stably and safely. It features an auto-restart function while the AC is recovering. Additional features include cold start, and the smart battery charger design optimizes battery performance.
- High-Speed Cooling Fan: The off grid hybrid solar inverter features a built-in intelligent temperature-controlled cooling fan. When the hybrid pure sine inverter's internal temperature reaches a certain level, the fan will rotate and effectively reduce the operating temperature.
- Extensive Application: Hybrid solar power inverter compatible with mains voltage or generator power. The charging current is settable according to your battery type. This all in one inverter can power all kinds of appliances in a home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, air conditioners, laptops, etc.
People Who Bought This Item Also Bought
Description
3KVA 2400W Multi-Function Hybrid Solar Inverter
PWM Solar Controller & LCD Setting & Pure Sine Wave
- VEVOR hybrid off grid inverter is widely used in DC to AC areas, highly recommended for electronic equipment that requires cleaner AC power to operate effectively. Aluminum housing, an integrated interface system, and the transformer-less design provide reliable power conversion in a compact size and high efficiency. All in one solar inverter allows you to power up multiple loads, such as office equipment and major household appliances. Let's power it up together!
- Multi-Function Hybrid Inverter
- LCD Setting & Aluminum Housing
- Fully Security Protections
- High-Speed Cooling Fan
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

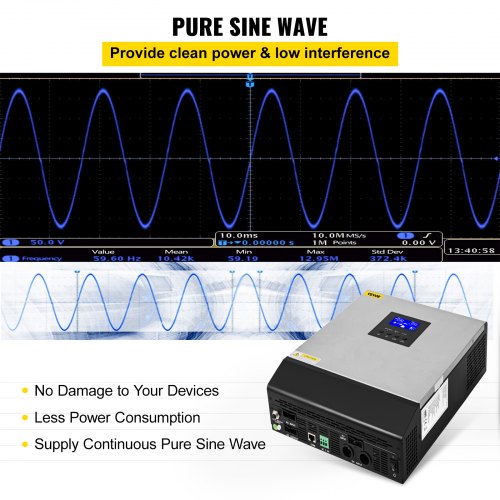

Pure Sine Wave
The hybrid power inverter charger outputs continuous stable pure sine wave by wave phase-detection that is more reliable to provide clean power and low interference to your devices.
Professional LCD Display
The clear LCD display provides simple button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Multiple Protection Designs
There are six main protection measures for the inverter hybrid 24V: short circuit protection, over-temperature protection, over-load protection, low voltage protection, over-voltage protection, and reverse polarity protection.
Intelligent Fan Cooling
A built-in silent cooling fan will effectively rotate at a different speed according to power load and temperature. Multiple cooling holes effectively avoid short circuit and aging problems caused by insects or small animals entering the machine.
Sturdy Aluminum Alloy
The hybrid inverter charger shell is made of high-strength aluminum material, stronger than the traditional iron shell, and has good oxidation and deformation resistance. It effectively protects the internal components from external interference.
Various Application
The inverter controller outputs the more stable pure sine wave, and output can be powered by utility directly or powered by battery or PV in battery mode. Perfect for an air compressor, fridge, freezer, microwave oven, electric saw, hairdryer, computer, etc.
Specifications
- Model: PS3K
- Rated Power: 3000VA / 2400W
- Input
- Voltage: 120V AC
- Selectable Voltage Range: 95-140VAC ± 7V(UPS); 65-140VAC ± 7V(Appliances)
- Frequency Range: 50 Hz / 60 Hz (Auto Sensing)
- Output
- AC Voltage Regulation (Batt. Mode): 120V AC ± 5%
- Surge Power: 6000VA
- Efficiency(Peak): 93%
- Transfer Time: 10 ms(For Personal Computers); 20 ms (For Home Appliances)
- Wave Form: Pure Sine Wave
- Battery
- Battery Voltage: 24V DC
- Floating Charge Voltage: 27V DC
- Overcharge Protection: 30V DC
- Solar Charger & AC Charger
- Maximum PV Array Open Circuit Voltage: 80V DC
- PV Range @ Operating Voltage: 30 - 32V DC
- Standby Power Consumption: 2W
- Maximum Solar Charge Current: 50A
- Maximum AC Charge Current: 30A
- Maximum Charge Current: 80A
- Physical
- Product Dimensions(L x W x H ): 12 x 10.7 x 3.94 in / 305 x 272 x 100 mm
- Net Weight: 15.21 lbs / 6.9 kg
- Operating Environment
- Humidity: 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature: 32℉ to 131℉ / 0℃ to 55℃
- Storage Temperature: 5℉ to 140℉ / -15℃ to 60℃
Package Content
- 1 x Multi-Function Hybrid Solar Inverter
- 1 x Connect Wire
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
3KVA 2400W Multi-Function Hybrid Solar Inverter
PWM Solar Controller & LCD Setting & Pure Sine Wave
- VEVOR hybrid off grid inverter is widely used in DC to AC areas, highly recommended for electronic equipment that requires cleaner AC power to operate effectively. Aluminum housing, an integrated interface system, and the transformer-less design provide reliable power conversion in a compact size and high efficiency. All in one solar inverter allows you to power up multiple loads, such as office equipment and major household appliances. Let's power it up together!
- Multi-Function Hybrid Inverter
- LCD Setting & Aluminum Housing
- Fully Security Protections
- High-Speed Cooling Fan
Pure Sine Wave
The hybrid power inverter charger outputs continuous stable pure sine wave by wave phase-detection that is more reliable to provide clean power and low interference to your devices.
Professional LCD Display
The clear LCD display provides simple button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Multiple Protection Designs
There are six main protection measures for the inverter hybrid 24V: short circuit protection, over-temperature protection, over-load protection, low voltage protection, over-voltage protection, and reverse polarity protection.
Intelligent Fan Cooling
A built-in silent cooling fan will effectively rotate at a different speed according to power load and temperature. Multiple cooling holes effectively avoid short circuit and aging problems caused by insects or small animals entering the machine.
Sturdy Aluminum Alloy
The hybrid inverter charger shell is made of high-strength aluminum material, stronger than the traditional iron shell, and has good oxidation and deformation resistance. It effectively protects the internal components from external interference.
Various Application
The inverter controller outputs the more stable pure sine wave, and output can be powered by utility directly or powered by battery or PV in battery mode. Perfect for an air compressor, fridge, freezer, microwave oven, electric saw, hairdryer, computer, etc.
Package Content
- 1 x Multi-Function Hybrid Solar Inverter
- 1 x Connect Wire
Specifications
- Model: PS3K
- Rated Power: 3000VA / 2400W
- Input
- Voltage: 120V AC
- Selectable Voltage Range: 95-140VAC ± 7V(UPS); 65-140VAC ± 7V(Appliances)
- Frequency Range: 50 Hz / 60 Hz (Auto Sensing)
- Output
- AC Voltage Regulation (Batt. Mode): 120V AC ± 5%
- Surge Power: 6000VA
- Efficiency(Peak): 93%
- Transfer Time: 10 ms(For Personal Computers); 20 ms (For Home Appliances)
- Wave Form: Pure Sine Wave
- Battery
- Battery Voltage: 24V DC
- Floating Charge Voltage: 27V DC
- Overcharge Protection: 30V DC
- Solar Charger & AC Charger
- Maximum PV Array Open Circuit Voltage: 80V DC
- PV Range @ Operating Voltage: 30 - 32V DC
- Standby Power Consumption: 2W
- Maximum Solar Charge Current: 50A
- Maximum AC Charge Current: 30A
- Maximum Charge Current: 80A
- Physical
- Product Dimensions(L x W x H ): 12 x 10.7 x 3.94 in / 305 x 272 x 100 mm
- Net Weight: 15.21 lbs / 6.9 kg
- Operating Environment
- Humidity: 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature: 32℉ to 131℉ / 0℃ to 55℃
- Storage Temperature: 5℉ to 140℉ / -15℃ to 60℃
Compare with similar items
Specifications
| Model | PS3K |
| Rated Power | 3000VA / 2400W |
| Input | |
| Voltage | 120V AC |
| Selectable Voltage Range | 95-140VAC ± 7V(UPS); 65-140VAC ± 7V(Appliances) |
| Frequency Range | 50 Hz / 60 Hz (Auto Sensing) |
| Output | |
| AC Voltage Regulation (Batt. Mode) | 120V AC ± 5% |
| Surge Power | 6000VA |
| Efficiency(Peak) | 93% |
| Transfer Time | 10 ms(For Personal Computers); 20 ms (For Home Appliances) |
| Wave Form | Pure Sine Wave |
| Battery | |
| Battery Voltage | 24V DC |
| Floating Charge Voltage | 27V DC |
| Overcharge Protection | 30V DC |
| Solar Charger & AC Charger | |
| Maximum PV Array Open Circuit Voltage | 80V DC |
| PV Range @ Operating Voltage | 30 - 32V DC |
| Standby Power Consumption | 2W |
| Maximum Solar Charge Current | 50A |
| Maximum AC Charge Current | 30A |
| Maximum Charge Current | 80A |
| Physical | |
| Product Dimensions(L x W x H ) | 12 x 10.7 x 3.94 in / 305 x 272 x 100 mm |
| Net Weight | 15.21 lbs / 6.9 kg |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | 32℉ to 131℉ / 0℃ to 55℃ |
| Storage Temperature | 5℉ to 140℉ / -15℃ to 60℃ |
| Manual |
Questions and Answers
Q: Can this be used with Nickel Metal Hydride batteries?
A: It is recommended that you use 24V lead-acid batteries.
By Vevor on
Q: What are the different modes? can it be set for battery primary mode and then when the battery gets low or near dod it will switch to mains power?
A: This Hybrid Solar Inverter can only be connected 12V battery pack and 230V mains, and it will switch to mains power when the battery gets low or near dod.
By Vevor on
Q: my panels are 395 watts 9.7 amps and 40.6 volts will this work with them?
A: Hybrid Solar Inverter is rated at 50 amps 24V so that's 1200 watts of solar. Your panels are 395 watts so 1200 / 395 is 3 panels in series giving you 1185 watts and amps stay the same at 9.7 amps below the 50 amp rating. In parallel you could do 4 panels with watts staying at 395 but current adding up with four panels to 38.8 amps safely in the 50 amp hybrid rating. You need to hook a 24 volt battery configuration to this unit in order for it to even turn on. Have no idea how many panels you have? Has terminals to hook power cable to for a generater and terminals for AC output 120V with a max load of 2400 watts. This was originally for Lead Acid batteries but it's confusing on what batteries this can actually be configured for. We have (4) 24 volt panels at 220 watts and 7.6 amps hooked up in parallel feeding (2) 12volt batteries hooked up in series thus giving us 24volts the rating of the unit
By Vevor on
