VEVOR 16'' Shutter Exhaust Fan, High-speed 2000 CFM, Aluminum Wall Mount Attic Fan with AC-motor, Ventilation and Cooling for Greenhouses, Garages, Sheds, Shops, FCC
55
VEVOR shutter exhaust fan with three silver shutters and a protective grill, designed for ventilation.
VEVOR shutter exhaust fan with three silver shutters and a protective grill, designed for ventilation.
VEVOR shutter exhaust fan in a greenhouse enhancing ventilation with lush green plants.

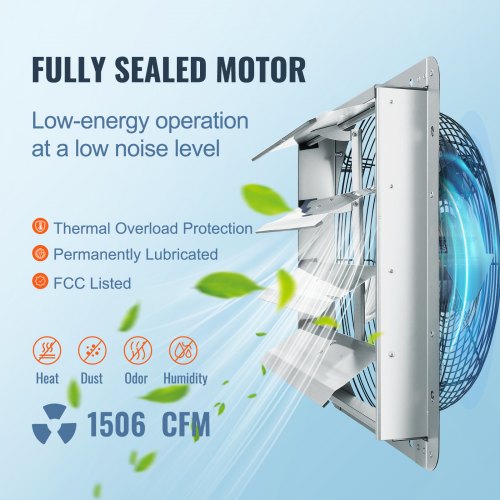

VEVOR shutter exhaust fan with 1506 cfm, fully sealed motor, low-energy, thermal overload protection
VEVOR waterproof aluminum alloy fan, fully assembled, rust-proof, corrosion-proof.
VEVOR shutter exhaust fan with gravity shutter, automatic shutdown, and aluminum alloy construction.
VEVOR shutter exhaust fan in greenhouse, garage, barn, attic, and shed for ventilation needs.

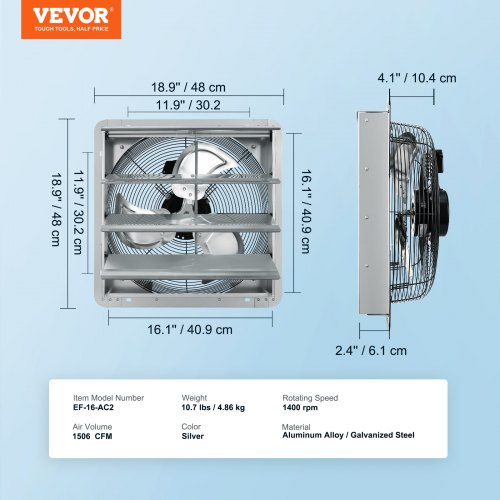

VEVOR shutter exhaust fan measurements: 18.9"x18.9"x2.4", 1400 rpm, silver, 1506 cfm, 10.7 lbs.
garage with a partially open door and two VEVOR shutter exhaust fans installed on the wall.
VEVOR shutter exhaust fan with silver shutters and blades, mounted on a metal frame.
VEVOR shutter exhaust fan with metal shutters and protective grille.
VEVOR shutter exhaust fan with three-blade design and protective metal grille in a square frame.
VEVOR shutter exhaust fan with protective grille and adjustable aluminum shutters in a silver finish.
Price including VAT See details
Save up to 15% with PRO price. Sign up for free PRO Account.
With or Without Controller: No
No Including Programmable Controller
Fan Diameter: 16 inch
16 inch 10 inch 12 inch 14 inch 24 inch
QTY: 1
Add to Cart
Buy Now
Add to Quote
FREE Returns.Details
Add to Wishlist
About This Item
  • 16'' Exhaust Fan: Dimensions: 18.9 x 18.9 inch | Airflow: 2000 CFM | FCC Listed | Speed: 1450 rpm. Our high-airflow exhaust fan can eliminate heat, humidity, unpleasant odor, and dust from rooms, buildings, and small enclosed work areas. Get ready to relax and in clean air in all your rooms.
  • High Performance: 120V/60Hz, 115 W. The wall exhaust fan has a premium motor that maximizes airflow while reducing noise and power consumption. And the fully enclosed motor has thermal protection and permanent lubrication for security and easy maintenance.
  • Rust-proof Material: The shutter exhaust fan has a rugged all-metal structure and features a galvanized steel frame, aluminum alloy fan, and shutter, which is highly resistant to weather, liquid, and dust.
  • No Assembly: Get ready to fly through the installation process! Our wall mount exhaust fan comes fully assembled and ready to install right out of the box. No more worrying about wiring! Includes 4 bolts.
  • Widely Used: It is perfectly suitable for any place you install and stays with you through the long, sultry summer! Works well for garages, workshops, chicken coops, sheds, attics, greenhouses, etc.
See more See less

Frequently Bought Together

People Who Bought This Item Also Bought

Description
Enjoy the Fresh Air from VEVOR’s Shutter Exhaust Fan
What's the best way to beat the heat? Our Exhaust Fans are the quickest and most effective solution. Summer heat, humidity, and odors are dissipated with a single fan. Start creating a healthy, secure home environment today with VEVOR!
  • VEVOR shutter exhaust fan ventilating heat and humidity from a home interior with 2000 cfm airflow.
  • VEVOR shutter exhaust fan, 115w, low noise, energy-saving, thermal overload protection, fcc listed.
  • VEVOR shutter exhaust fan ventilating heat and humidity from a home interior with 2000 cfm airflow.
  • VEVOR shutter exhaust fan, 115w, low noise, energy-saving, thermal overload protection, fcc listed.
  • VEVOR shutter exhaust fan with aluminum alloy blades, galvanized-steel frame, and weather-proof shutters.
  • VEVOR shutter exhaust fan with automatic gravity shutter, showing "power on" and "power off" states.
  • VEVOR shutter exhaust fan with aluminum alloy blades, galvanized-steel frame, and weather-proof shutters.
  • VEVOR shutter exhaust fan with automatic gravity shutter, showing "power on" and "power off" states.
  • gardener working in a greenhouse with VEVOR shutter exhaust fans, surrounded by lush green plants.
  • VEVOR shutter exhaust fan installed above a double garage with partially open doors and parked cars inside.
  • VEVOR shutter exhaust fan installed on a grey barn wall under a metal roof on a cloudy day.
  • red barn with VEVOR shutter exhaust fan installed in the upper wall beneath a clear blue sky.
  • gardener working in a greenhouse with VEVOR shutter exhaust fans, surrounded by lush green plants.
  • VEVOR shutter exhaust fan installed above a double garage with partially open doors and parked cars inside.
  • VEVOR shutter exhaust fan installed on a grey barn wall under a metal roof on a cloudy day.
  • red barn with VEVOR shutter exhaust fan installed in the upper wall beneath a clear blue sky.

Here are some answers to your concerns:


Q: What size of hole needs to be cut?
A: You'll need to cut a 18.9'' x 18.9'' hole to place the fan before installation. Fans can be installed both inside and outside the walls.


Q: How to connect these wires inside the fan?
A: No assembly required.

VEVOR shutter exhaust fan ef-16-ac2 specs, 18.9"x18.9", 1506 cfm, 1400 rpm, aluminum alloy, silver.VEVOR shutter exhaust fan ef-16-ac2 specs, 18.9"x18.9", 1506 cfm, 1400 rpm, aluminum alloy, silver.
See more
Compare with similar items
See more

Specifications

Model VV-ACPQS-16
Power 115 W
Air Volume 2000 CFM
Material Aluminum Alloy, Galvanized Steel
Voltage AC 120 V / 60 Hz
Certification FCC
Rotating Speed 1450 RPM
Weight 14.3 lbs / 6.5 kg
Color Silver
Manual
English
Questions and Answers
Q: My new shop has corrugated exterior metal walls. The corrugation runs horizontally. How would the 16" fan mount on this? Most of the pictures I see are on totally flat walls. Thanks.
A: This depends on the actual situation of the exterior wall. If it can bear the weight and can open a hole, it should be possible.
by vevor on
Q: We’re can I get the fan curve?
A: The product is an axial flow fan, used without ducting, with a maximum static pressure of about 45-50 Pa.
by vevor on
Q: Hi, can you please post the fan curve? Thanks you
A: Hi, this is an axial fan, which is not connected to the pipe, and the maximum static pressure is about 45-50Pa.
by vevor on
See all 8 answered questions
Customer Reviews
4.8 out of 5
Based on 55 reviews
Dale Frier
Dale
Reviewed on
Great fan for the price, would have given it 5 stars if only the power cord was just a little bit longer. 5" just isn't enough . ...See more See less
Helpful
Rob H
Fan is well made. Louvers are a bit flimsy
Reviewed on
Fan ended up not moving as much air as I hoped, but is also a lot quieter than I expected. frame and fan housing is well made. Electrical connection is kinda poorly thought out. Would have been better to either have a longer cord attached or no cord attached. The 6\" that is attached is too short for any application I can think of and is a bad spot to splice to a longer cord. Biggest concern is the louvers however. They are very thin aluminum and will bend easily. ...See more See less
Helpful
Lisa
Homeowner
Reviewed on
We recently built an out door kitchen with a 36 in griddle and a 36 in natural gas grill. I bought 2 of these to use in the outside wall 1 about 18 inches above each grill. They work so much better than an overhead vent I would definitely suggest these ...See more See less
Helpful
James
Great for my workshop
Reviewed on
Have it set to a humidity/temp thermostat to pull excess heat out of my workshop. Knocks about 10 degrees off the interior temperature. With the switch it’s nice because it pulls excessive moisture out too. ...See more See less
Helpful
Lucas
Hobbyist
Reviewed on
Had this installed in a new shop for through ventilation during spring and fall to reduce AC usage. Decently quiet fan and seems to move some air, though I'm not sure its the full 3320CFM it claims. I also wish it sealed a bit better when not running as I do air condition the building during the summer and it almost certainly leaks air. Thankfully its high enough up it really shouldn't affect much. Overall a good buy for the price ...See more See less
Helpful
one people found this helpful
See all 55 reviews
